For FORD MUSTANG 2015-2021 (S550) BASE MODEL

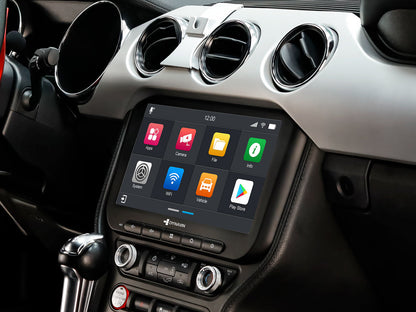

Replaces the Base Model 4" factory screen with a 10" touchscreen!

In stock now! Ships by the next business day.

Plug and Play!
Premium 10.1" / 16:9 high resolution capacitive touchscreen (1280 x 720 pixels)
Android OS. Choose between 32gb or 160gb app storage capacity
Wireless Apple CarPlay
Wired Android Auto
Smartphone screen-mirroring
Google Play Store preinstalled. Connects to the internet via built-in WiFi module.
Supports steering wheel controls, air conditioning information on the screen, outside temperature on the display and the factory sound system. Integrated with parking sensors (if equipped).
Bluetooth for audio streaming and hands-free phone calls via smartphone (Android/Apple). External microphone included.
Maintains or improves sound quality! High quality sound processor compatible with all audio systems both factory and aftermarket including DSP. 9-band EQ, time correction, and more. FM RDS tuner with DSP noise-masking and 15 preset stations.
AV input/output for aftermarket subs/amps, etc.
Multimedia player by USB connectivity
Integrates with the factory camera or with universal aftermarket backup/front cameras (factory camera adapter included)
Replaces Sync (if-equipped) with Apple's Siri or Google Assistant (depending on your smartphone). Compatible with or without Sync.
SiriusXM compatible with SXV300 Tuner (plug-and-play) sold separately (does not integrate with factory SiriusXM).
Customizable boot logo. Make any image your start up screen!
Built-in iGO Primo GPS navigation software with 3D view and premium POI
Periodic firmware updates available here
One year warranty through Dynavin North America - Fresno, CA

Install Video

Click here for install guides

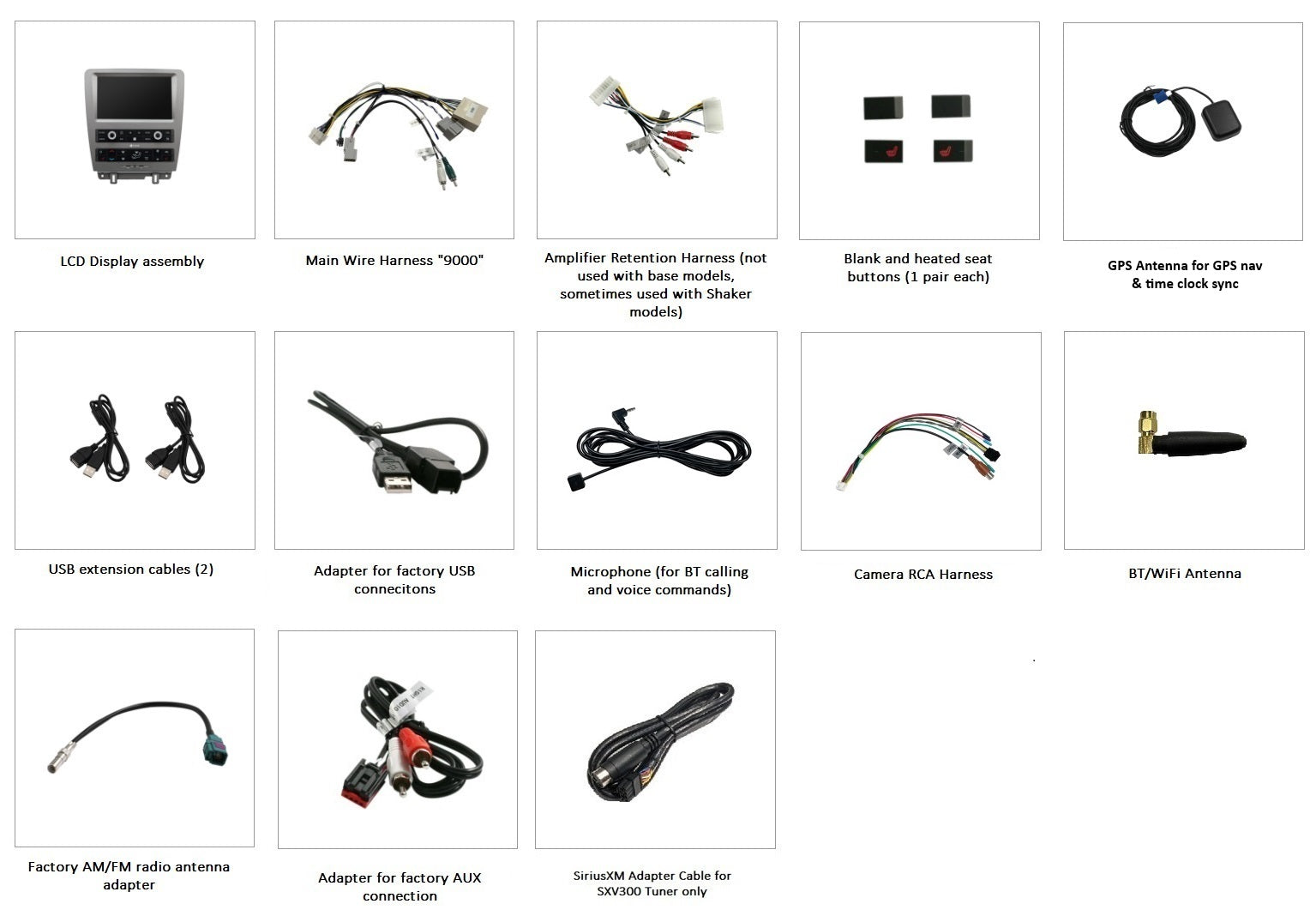

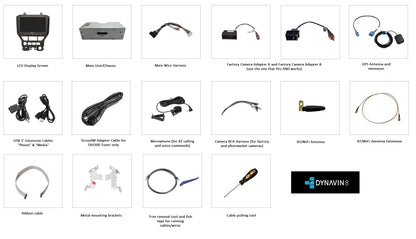

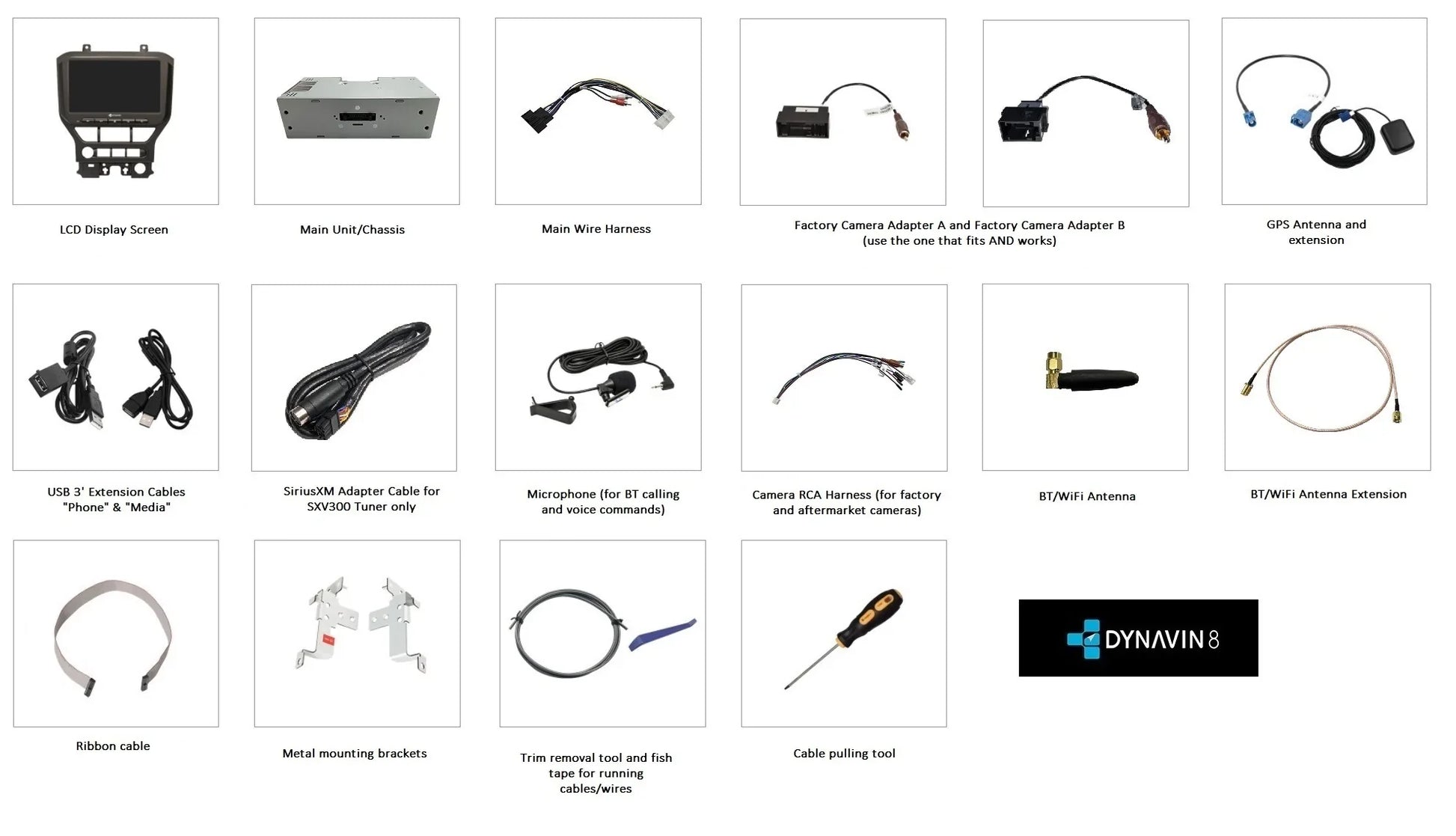

INCLUDED PARTS

FEATURES

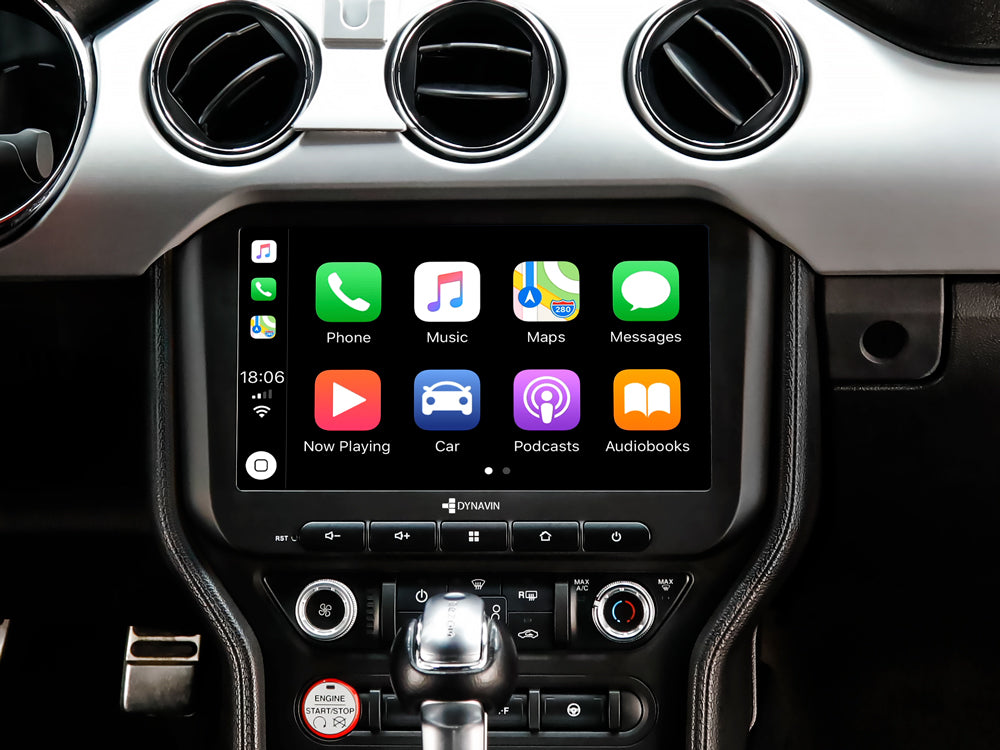

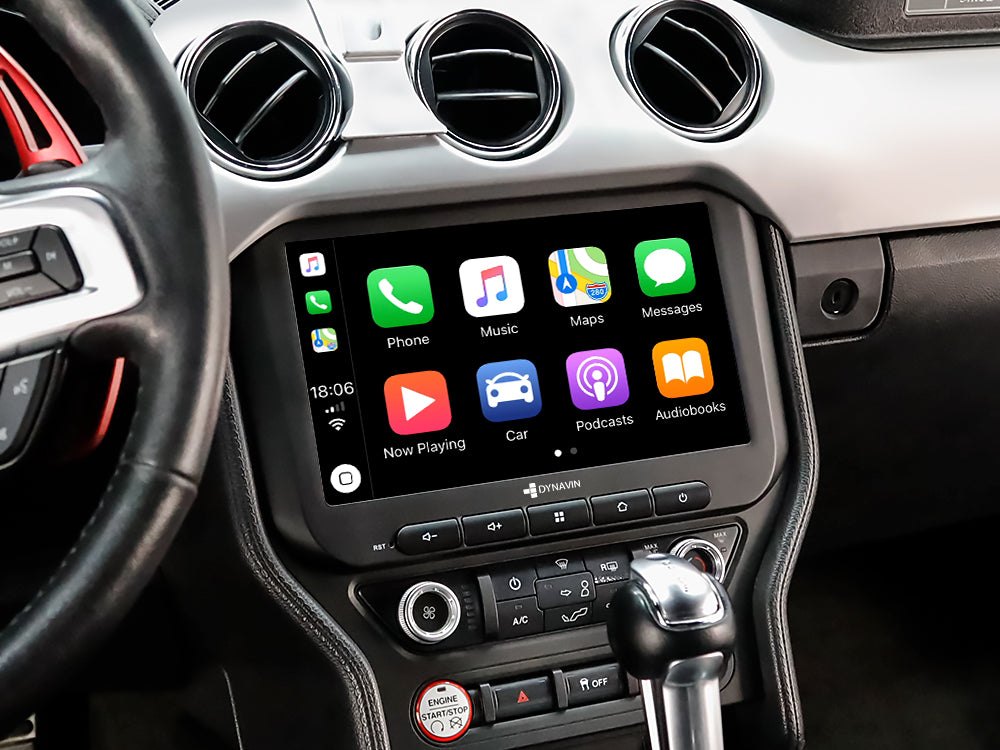

Apple CarPlay and Android Auto Compatible

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 8 supports wireless Apple CarPlay and screen-mirroring.

For a list of compatible Apple CarPlay apps, visit: https://www.apple.com/ios/carplay/.

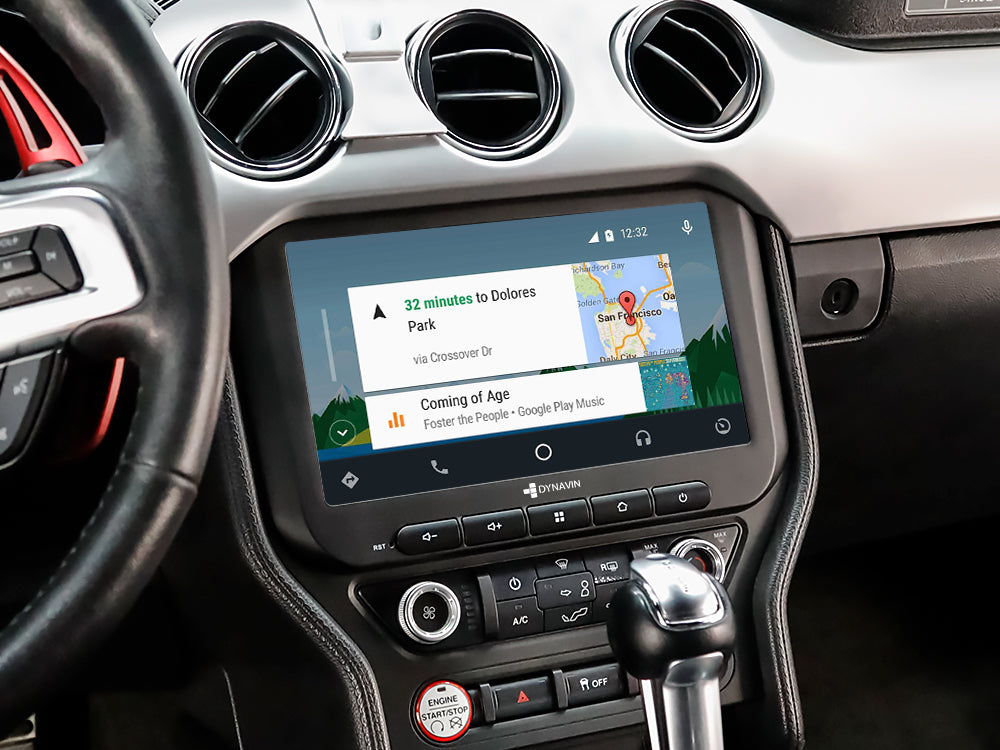

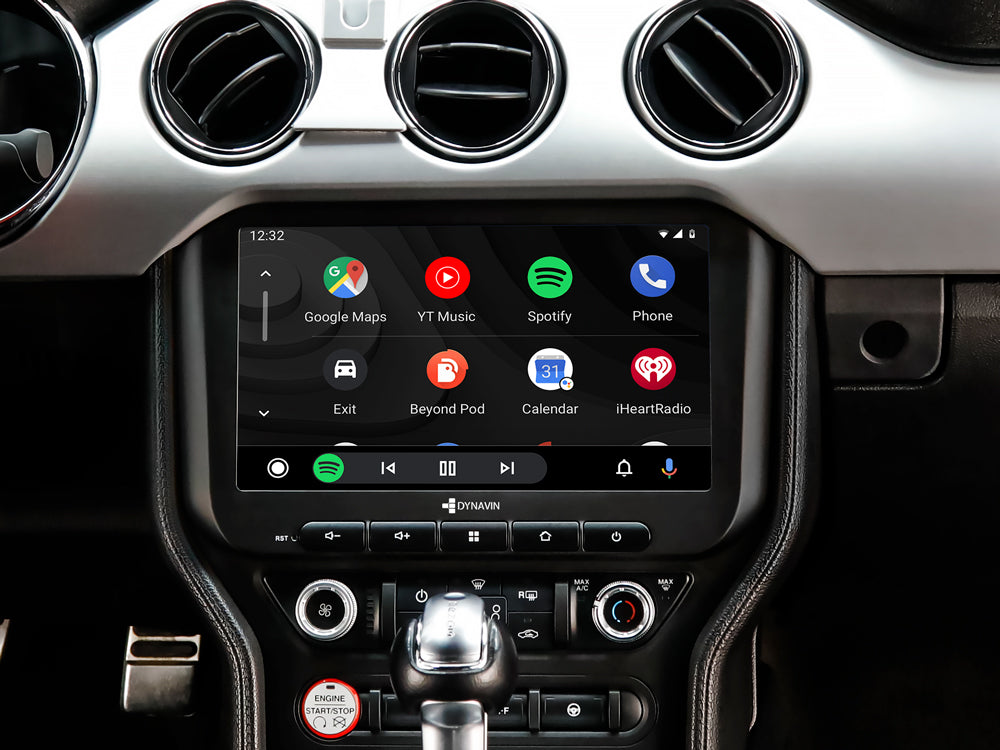

Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 8 supports Android Auto and screen-mirroring.

For Android Auto apps, visit: https://www.android.com/auto/.

Fast Boot

The Dynavin 8 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.

Google Play Store

The Google Play Store allows users to install Android apps via WiFi connection.

Steering Wheel Control Integration

The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.

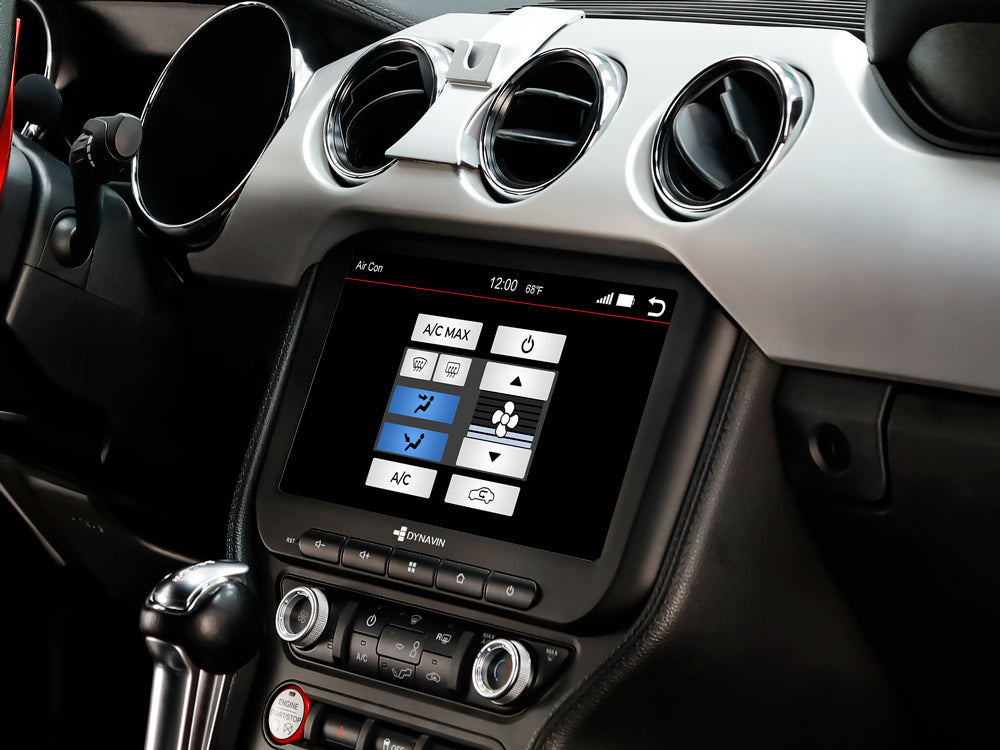

Climate Control Display

Dynavin 8 gives you visual feedback for the driver and passenger temperatures, air conditioning status, heated seat status, air vents and more. You can also adjust fan direction through the air conditioning menu in cars that support this feature.

Backup Camera

The Dynavin 8 integrates with your Mustang's factory reverse camera (if equipped). You can see the dynamic guide lines in the reverse camera mode. Or add an aftermarket camera!

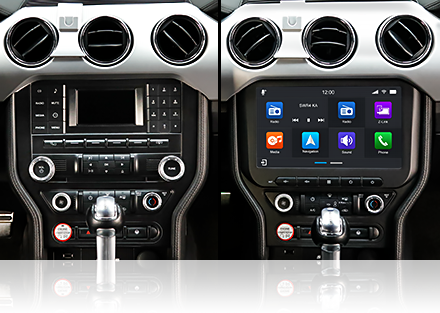

Factory HVAC Retention

The Dynavin Mustang radio retains the original HVAC buttons.

SiriusXM Satellite Radio Ready

Add the SiriusXM Connect Vehicle tuner (SiriusXM tuner sold separately) to listen to your SiriusXM subscription anytime, anywhere.

Integrated Bluetooth

The integrated Bluetooth module enables the wireless connection of a cell phone for hands-free communication. A very intuitive user interface makes it extremely easy to use and you can use the on-screen keyboard to search for contacts. Bluetooth also enables audio streaming from the phone.

Customizable Start Screen (Boot Logo)

With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.

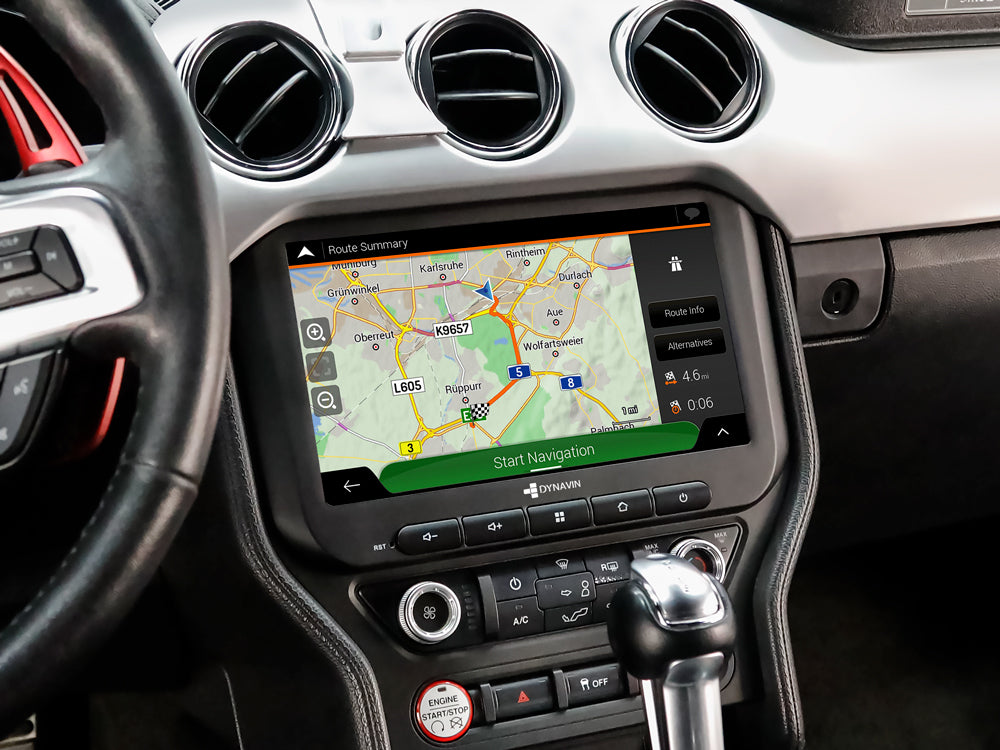

GPS Navigation with iGO Primo- included (North America maps)

Navigation software is preinstalled on the Dynavin 8 with 3D view, TTS, and premium POI.

Equalizer Presets

The Dynavin 8 offers extensive sound adjustment options to get the best out of your Mustang's sound system and to adjust the sound to your preference. The built-in 9-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.

Source Level Setting

In the source menu you can adjust the different volume levels for the various audio sources to your preference.

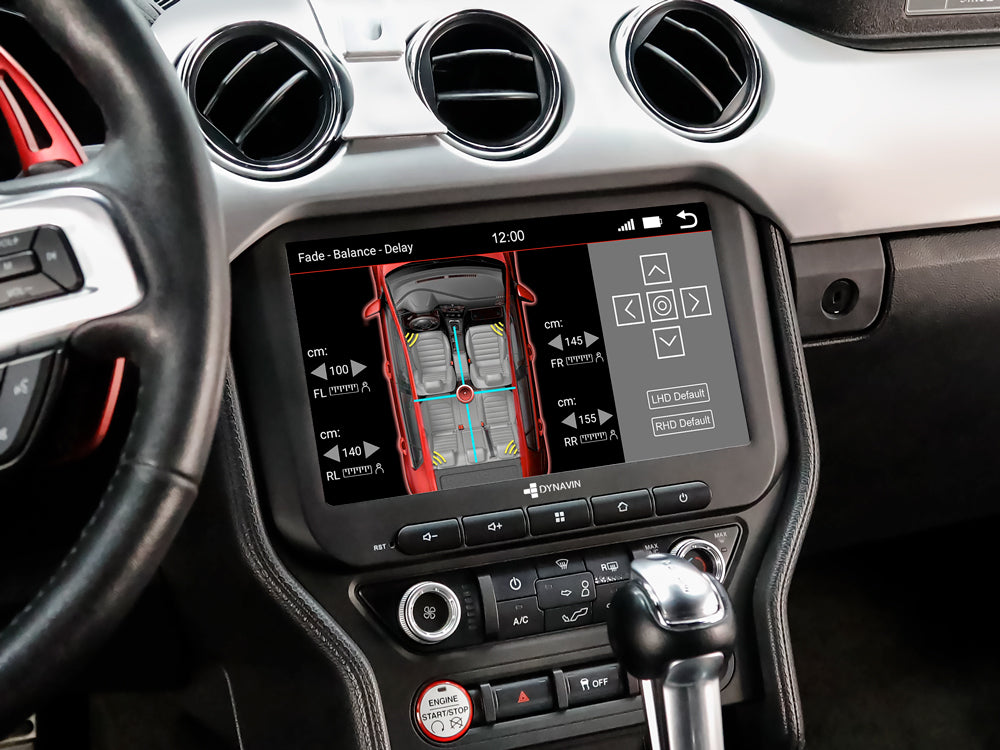

Fader and Balance

Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.

SPECIFICATIONS

General

Android OS with 2 GB RAM and 32 GB or 160 GB app storage capacity
Power Output: 4 x 45 W High Power Amplifier
3 Pre-Outs (3 V, Front / Rear / Subwoofer)
CANBUS Integration
Menu Language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
Camera Connection & Built-in Controls for Dynavision Multi-View Cameras / compatible with factory camera
Camera Guideline Adjustment
Rear-view Camera Display Automatic / Fast Boot-up
9-Band EQ
Auto Dimmer
Firmware Updatable
Engine Start-Stop unaffected

Screen

Display: 10.1-inch (LVDS)
Resolution 1280 x 720 pixels (RGB)
Capacitive touch screen
Anti-reflection display
Working system: TFT Active Matrix
Active area: 222.72 (H) x 125.28 (V) mm

Z-Link

Works with wireless Apple CarPlay
Works with Android Auto
Works with Smartphone screen-mirroring

Built-in Bluetooth

Integrated BT module
Specification standard: 3.0sands2.1+EDR
-95dBm sensitivity, excellent anti-interference performance
Supports low-power scanning function
PBAP phonebook synchronization with 1000 entries
Hands-free function with HFP
Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
Individual profile connection: hands-free function and music streaming
Phonebook: Automatic phonebook transfer
Supports dashboard display for caller alerts
Supports saving pairing information for multiple phones
Device name display
Call list: dialed number / received calls / missed calls
Speech volume setting: adjustable for incoming and outgoing calls
Microphone gain adjustable
Display of the GSM signal strength
Display of the battery charge level

USB

USB specification: USB 2.0, fast charging support
Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
Image browsing (supported formats: JPG/BMP/PNG/JPEG)
Playback mode: random play / single song loop / all loop / folder loop
Picture can be set as starting screen
Sync song album images
Draggable progress bar
Video playback speed x2/ x4
Memory playback progress
Supports dashboard display of songs/composers
Supports steering wheel to control up/down song/volume level
File / Folder name search
Supports up to 256 GB USB storage device

Sound Tuning

Maximum output power: 4 x 45 W
Adjustable subwoofer level
Subwoofer, Bass, Middle, Treble phase selectable
Equalizer Presets: Pop, Rock, Classical
9-band parametric equalizer
Fader and balance
Digital time correction

Radio

FM frequency range: 87.5 – 108.0 MHz
AM frequency range: 530 – 1710 KHZ
FM Utility Sensitivity: 5-6 db
FM Stop Sensitivity: 22 db
AM stop sensitivity: 21 db
With left and right stereo channels
Signal to noise ratio: 56 db
Manual station storage for 15 stations
RDS functions: AF, TA, broadcast text
Automatic station tracking function
High Cut high frequency attenuation function
Support for changing FM/AM memory station pictures
Optional radio antenna power on/off

GPS Navigation

Maps: North America
Menu languages: 28 languages
Advanced address search
Postal/zip code search
Free search
Search with word pieces
Extended POI functions
Smart routes: use of historical traffic data
Fast route calculation
Extended route planning
Map display: 2D top view, 2D north orientation, 3D
3D city maps: 3D building views
Display of elevation profiles
3D motorway junctions: 3D display of motorway junctions
Tunnel mode
Highway mode
Navi Mix mode
Online Map Update via www.naviextras.com
Free map update after the first registration on naviextras.com

GPS

GPS antenna included
GPS reception frequency 1,575.42 ± 1 MHz
GPS reception sensitivity -165 dB max
Positioning accuracy: 10 m, 2D RMS
Data update rate: 1 HZ
Recapture time: 0.1 s on average

A2DP

BT audio streaming from cell phone
Display song title/lyrics/composer/vocalist
Steering wheel can control up/down song/volume level
Song title/lyrics can be displayed on the dashboard
