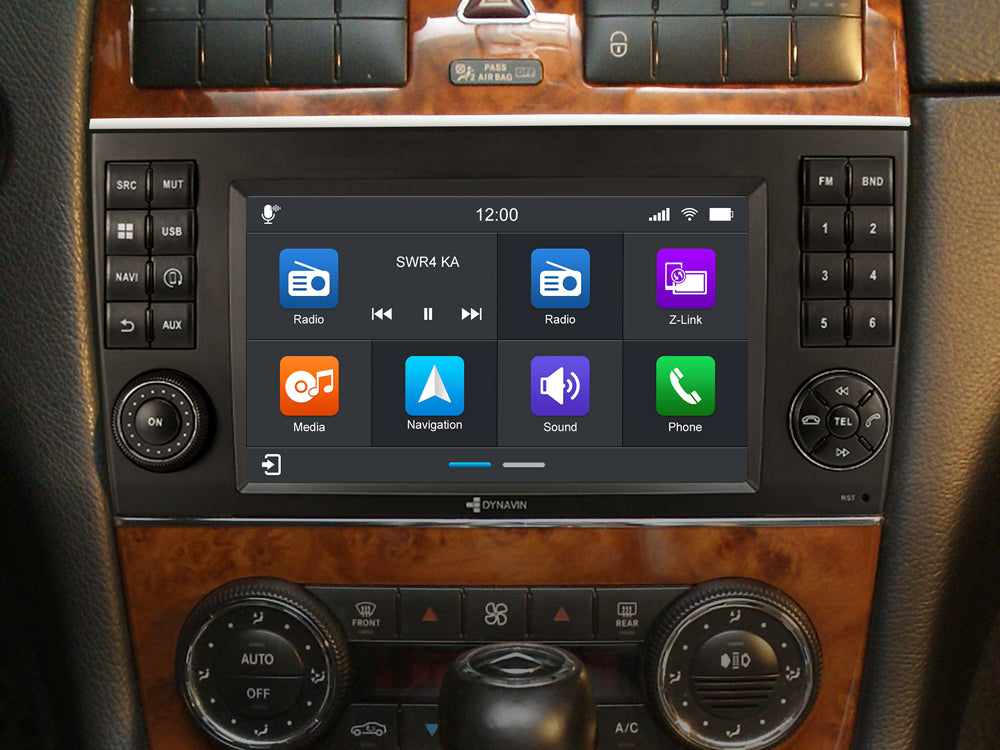

For MERCEDES-BENZ CLK 2005-2009 (facelift W209)

Plug and Play!
High-quality 7″/16:9 LCD capacitive touchscreen display (resolution 1024 x 600)
INCLUDED MOST ADAPTER INTEGRATES WITH OEM PREMIUM FIBER OPTIC AUDIO SYSTEM
Android OS with 32gb app storage capacity
Wireless & Wired Apple CarPlay
Wireless* & Wired Android Auto
Smartphone screen-mirroring
Google Play Store preinstalled. Connects to the internet via built-in WiFi module.
Integration of the CANBUS solution for steering wheel operation and parking sensor.
Bluetooth for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External microphone included.
FM RDS TMC tuner with DSP noise masking and 15 preset stations
Integrated sound DSP processor with 16-band EQ and time correction.
AV input/output for aftermarket subs/amps, etc.
Multimedia player via USB connection.
Reverse/backup and/or front camera ready; compatible with aftermarket backup cameras (see backup cameras sold separately)
Built-in iGO Primo GPS navigation software with 3D view and premium POI
Periodic firmware updates available here
One year warranty through Dynavin North America - Fresno, CA

INCLUDED PARTS

FEATURES

Apple CarPlay and Android Auto Compatible

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 8 supports wireless Apple CarPlay and screen-mirroring.

For a list of compatible Apple CarPlay apps, visit: https://www.apple.com/ios/carplay/.

Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 8 supports wired Android Auto and screen-mirroring.

For Android Auto apps, visit: https://www.android.com/auto/.

Fast Boot

The Dynavin 8 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.

Google Play Store

The Google Play Store allows users to install Android apps via WiFi connection.

Customizable Start Screen (Boot Logo)

With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.

Steering Wheel Control Integration

The Dynavin system communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.

Multifunction display (MFA)

The multifunction display (MFA) in the instrument cluster is linked to the Dynavin system and can display radio station names, ID3 tag from the media player, caller information, navigation information and the compass.

Backup Camera

Further upgrade your car with an aftermarket camera! The Dynavin 8 is backup and/or front camera ready!

Clock Synchronization

This function allows you to synchronize the car's time via the Dynavin radio, click on the clock synchronization icon to set the time (in the instrument cluster).

SiriusXM Satellite Radio Ready

Add the SiriusXM Connect Vehicle tuner (SiriusXM tuner sold separately) to listen to your SiriusXM subscription anytime, anywhere.

GPS Navigation with iGO Primo- included (North America maps)

Navigation software is preinstalled on the Dynavin 8 with 3D view, TTS, and premium POI.

Equalizer Presets

The Dynavin 8 offers extensive sound adjustment options to get the best out of your sound system and to adjust the sound to your preference. The built-in 16-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.

Source Level Setting

In the source menu you can adjust the different volume levels for the various audio sources to your preference.

Time Delay Setting

Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the time correction. With fiber optic cars, you won't be able to adjust the fader balance setting (it must remain centered).

SPECIFICATIONS

General

Android OS with 2GB RAM and 32GB storage
Output power: 4 x 45 W high-power amplifiers
3 pre-outs (3 V, front / rear / subwoofer)
CANBUS integration
Menu language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
Camera connection & built-in controls for Dynavision multi-view cameras
Camera guidelines setting
Rear view camera display Automatic / Fast boot up
16 band EQ
Automatic dimmer
Firmware upgradable
Compatible with start-stop system

Display

Display: 7-inch (LVDS)
Resolution 1024 x 600 pixels (RGB)
Capacitive touch screen
Anti-reflective display
Working system: TFT active matrix
Active area: 153.6 (H) x 86.64 (V) mm

Z-Link

Wireless Apple CarPlay
*Wireless and wired Android Auto: wireless Android Auto compatibility cannot be guaranteed with all Android phones
Smartphone screen-mirroring

Radio

FM Frequency Range: 87.5-108.0MHz
AM Frequency Range: 530-1710KHZ
FM Utility Sensitivity: 5-6db
FM Stop Sensitivity: 22db
AM Stop Sensitivity: 21db
With left and right stereo channels
Signal to noise ratio: 56db
Manual station storage for 15 stations
RDS functions: AF, TA, station text
Automatic channel search function
High-cut high-frequency attenuation function
Support for changing FM/AM memory space images
Optional switching on and off of the radio antenna

Sound Tuning

Maximum output power: 4 x 45 W
Adjustable subwoofer level
Subwoofer, bass, middle, treble phase selectable
Equalizer: Pop, Rock, Classic
16-band parametric equalizer
Digital Time Correction
Adjustable volume reduction when parking
Maximum switch-on volume adjustable

Integrated BT

Integrated BT module
Specification standard: 3.0 and 2.1 + EDR
-95dBm sensitivity, excellent anti-interference performance
Support low power scan function
PBAP phone book synchronization with 1000 entries
Hands-free calling with HFP
Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
Individual profile connection: hands-free function and music streaming
Phone book: Automatic transfer of the phone book
Dashboard display support for caller alerts
Support for saving connection history from multiple mobile phones
Device name display
Call history: dialed number / received calls / missed calls
Voice volume adjustment: adjustable for incoming and outgoing calls
Adjustable microphone gain
GSM signal strength display
Display of the battery level

Navigation

Maps: North America
Menu languages: 28 languages
Advanced address search
postcode search
Free Search
Search with parts of words
Advanced POI functions
Smart Routes: Use of historical traffic data
Fast route calculation
Advanced route planning
Map display: 2D top view, 2D north-up, 3D
3D city maps: 3D building views
Display of elevation profiles
3D Interchanges: 3D rendering of interchanges
tunnel mode
highway mode
Navi mix mode
Direct dialing by phone from POI data
Online map update via www.naviextras.com
Free map update after first registration on naviextras.com

GPS

GPS antenna included
GPS reception frequency 1,575.42 ± 1 MHz
GPS reception sensitivity -165 dB max
Positioning accuracy: 10 m, 2D RMS
Data update rate: 1HZ
Reacquisition time: 0.1 s on average

USB

USB specification: USB 2.0, support fast charging
Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
Image browsing (supported formats: JPG/BMP/PNG/JPEG)
Playback Mode: Shuffle / Single Loop / All Loop / Folder Loop
Image can be set as start screen
Sync Song Album Pictures
Movable progress bar
Video playback speed x2/ x4
Save Playback Progress
Support for dashboard display of songs/composers
Support steering wheel to control song/volume level up/down
Search by file/folder name
Supports up to 256GB USB storage device

A2DP

Sync BT music to cellphone
Display song title/lyrics/composer/singer
Steering wheel can control song/volume up/down
Song titles/lyrics can be displayed on the dashboard
