For Volkswagen CC 2012-2017 (select black or silver trim color)
High-quality 10.1″/16:9 LCD capacitive touchscreen display (resolution 1280 x 720)
Android 11 OS with 4GB RAM
Select 64GB or 192GB app storage capacity
Apple CarPlay Wireless & Wired
Android Auto Wireless & Wired
Smartphone screen-mirroring
Google Play Store - Connection to the internet via WiFi module.
Integration of CANBUS solution (for air conditioning information, steering wheel operation and parking sensor).
Reverse camera ready: compatible with all aftermarket reversing cameras (with RCA connector) and VW original cameras by optional adapter DVN-VCR-L (steering wheel does not move lines in reverse = no steering lock lines) or DVN-VCR-H (steering wheel moves lines in reverse = has steering lock lines).
BT for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External microphone included.
AV input/output for aftermarket subs/amps etc.
We recommend this Flush Mount USB Extension for easy access to a USB port otherwise there are two 3ft USB extensions included to route to the glove compartment.
With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, internet radio, or podcasts while still concentrating on the road. Dynavin 9 supports wireless and wired Apple CarPlay and screen-mirroring.

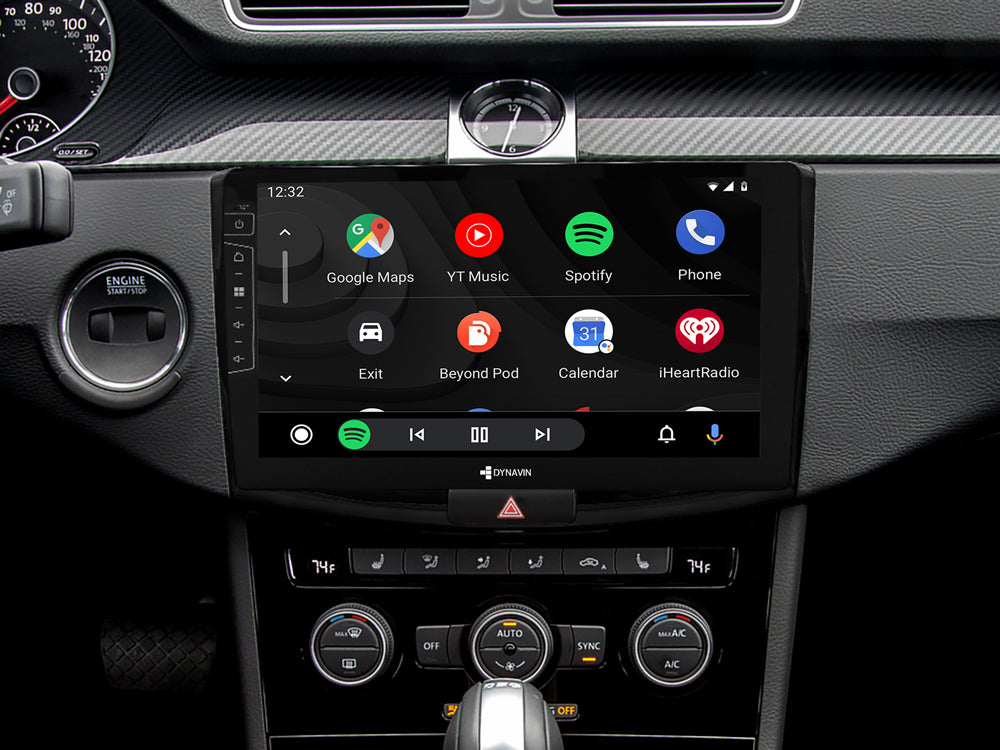

Android Auto is a mobile app made by Google that connects your Android phone to your car's touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music, and use messages with just a word or touch of a button. Dynavin 9 supports wired Android Auto and screen-mirroring.
The Dynavin 9 fast boot features allows the radio system to boot in 3 seconds so users can enjoy their music and use the system quickly.
Google Play Store
The Google Play Store allows users to install Android apps via WiFi connection.
Customizable Start Screen (Boot Logo)
With our own DynOS operating system, you have the option of changing the picture on the start screen and the logos of the stored radio stations.
Steering Wheel Control Integration
Communicates perfectly with the multifunction steering wheel of your vehicle. This upgrade still allows you to control volume, telephone, track search (forward / backward) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as “Siri” or “Google Assistant” via the steering wheel.
Backup Camera
Integrates with the OEM backup camera with the Dynavin camera adapter (sold separately): DVN-VCR-L (no steering lock lines from VW original cameras) or DVN-VCR-H (with steering lock lines from VW original cameras). Also compatible with aftermarket cameras.
PDC Integration (if equipped)
Retains OEM parking sensors (if equipped). If your vehicle is equipped with factory parking sensors, this functionality is retained when upgrading to the Dynavin system. The visual parking lines assist the driver in addition to the parking sensors which detect obstacles in front of or behind the vehicle. Within the detection field, the position of obstacles is shown using a graphic representation in the display and alerts the driver when parking. In addition to the front and rear sensors, the four side sensors are also shown on the display.
Multifunction Display
The multi-function display (MFA) in the instrument cluster is linked to the Dynavin system and can display radio station names, ID3 tag from media player, caller information, navigation information and the compass (The MFD's navigation menu needs to be activated if you don't have it in your vehicle).

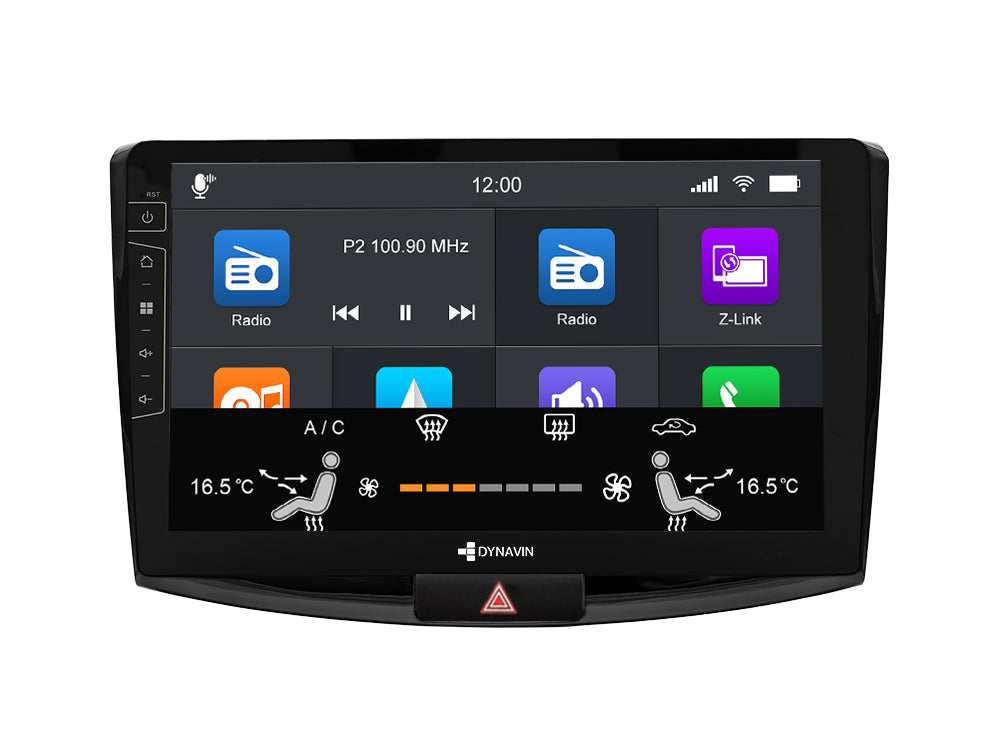

Climate Indicator
Visual feedback on driver and passenger temperatures, climate control status, heated seat status, selected air vents and more. This screen appears after pressing the MENU button on the HVAC panel (only for vehicles with air conditioning "Air Care Climatronic ").
Compatible with Dynaudio Sound System
Compatible with the original VW Dynaudio sound system and amplifier!
SiriusXM Satellite Radio Ready
Add the SiriusXM Connect Vehicle tuner (SiriusXM tuner sold separately) to listen to your SiriusXM subscription anytime, anywhere.

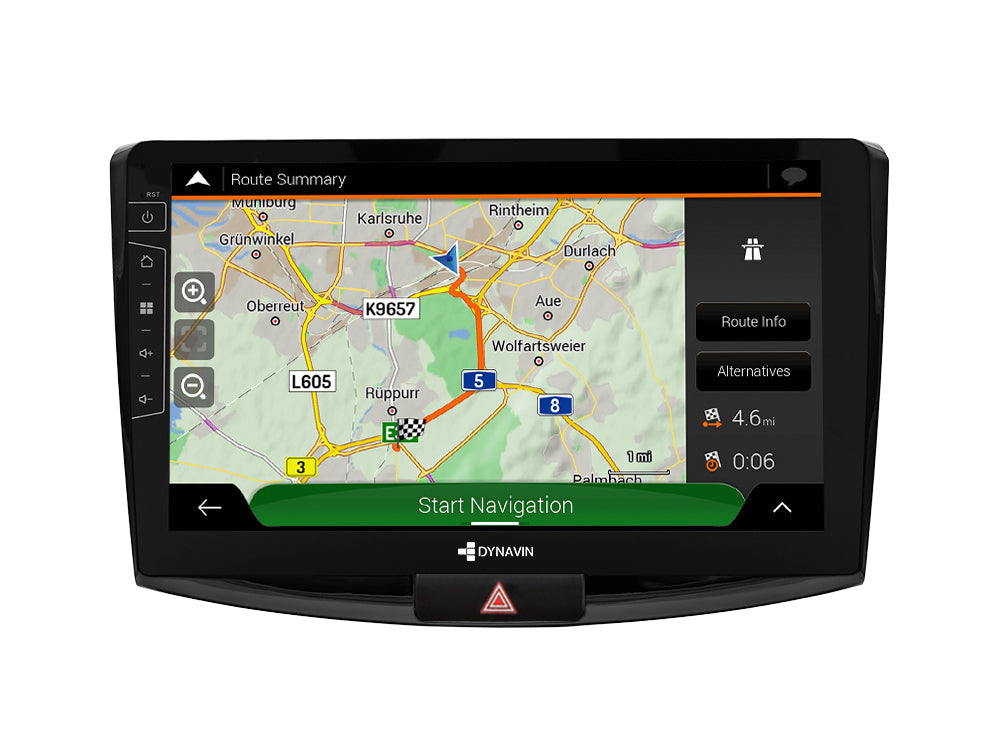

Dynaway GPS Navigation Software (pre-installed maps for North America)
No cell service? No problem! Always know where you are with GPS navigation with 3D view, online TMC* and TTS. Dynaway guarantees one free map update within 30 days of first use. Purchase and download the latest map data from flex.dynavin.com. 3 or 7 years of unlimited map data updates available for purchase at flex.dynavin.com. Additional map regions are also available for purchase.
Equalizer Presets
Extensive sound adjustment settings to get the best out of your sound system and adjust to your preference. The built-in 16-band parametric EQ allows separate adjustment for the front and rear channels with professional-level precision.
Source Level Setting
In the source menu you can adjust the different volume levels for the various audio sources to your preference.

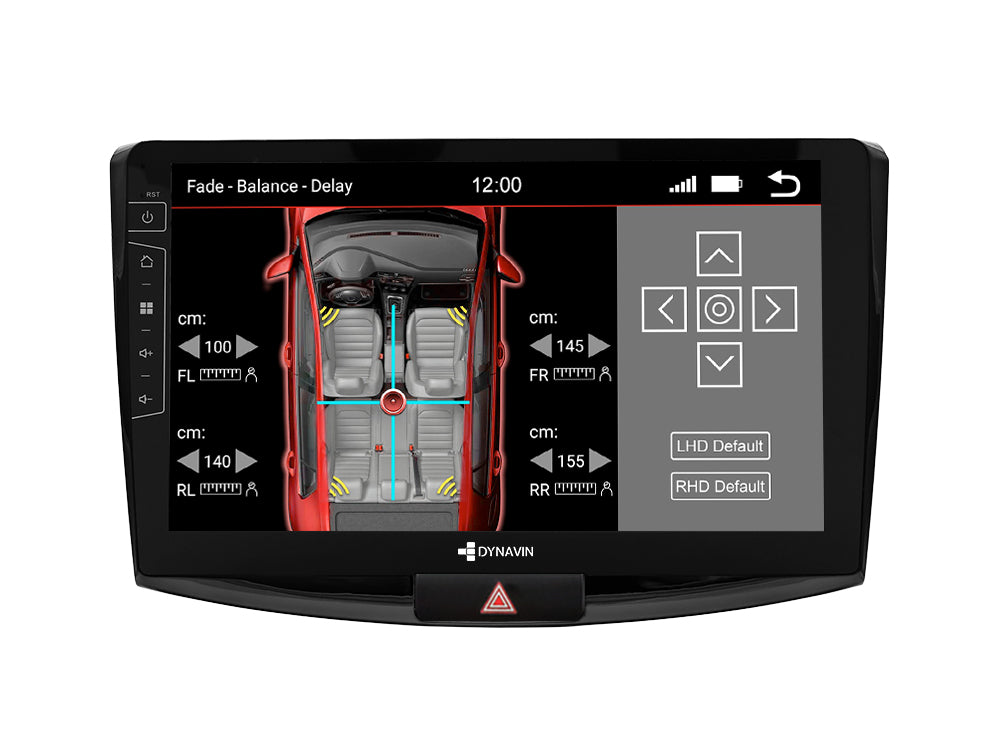

Fader and Balance
Simply drag the crosshairs on the touchscreen to the desired position on the illustration of the vehicle interior to set the fader balance and time correction.
SPECIFICATIONS
General
Android 11 OS with 4GB RAM and 64GB or 192GB storage capacity
